Network Configuration

Overview

RecoveryBox uses a network bridge architecture to manage its interconnections in a versatile way. Each physical interface can be assigned to one of the bridges depending on needs.

Interface management is handled by systemd-networkd.

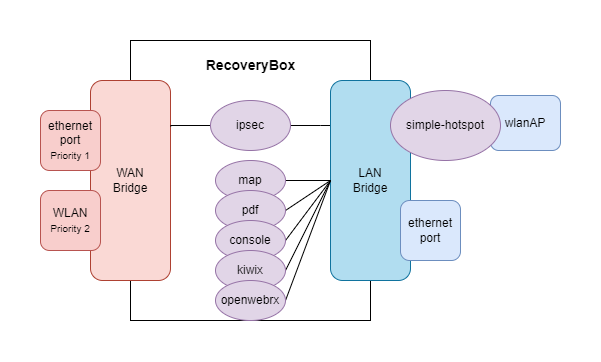

Diagram

Architecture

Bridges

Bridge	Role
Wan	Groups interfaces connected to the Internet (Ethernet in priority, Wi-Fi as fallback)
Lan	Groups local network interfaces (clients, internal services)

Wi-Fi interface (wlanAP)

The wlanAP interface is linked to the simple-hotspot container, which bridges it to the Lan interface.

WAN priority

Priority is always given to Ethernet interfaces. Even if a Wi-Fi interface on the WAN obtains a route with a gateway, the Ethernet interface takes priority as long as it is active.

iptables Rules

iptables rules are defined in the file /etc/iptables/iptables.sh.

Default rules

Chain	Rule	Description
INPUT	All from Lan	Traffic allowed from the local network
INPUT	ICMP from Wan	Ping allowed from the Internet
INPUT	SSH (port 22) from Wan	SSH connection allowed from the Internet
INPUT	Drop from Wan	All other inbound WAN traffic blocked
FORWARD	All to Wan	Traffic forwarded to the Internet
FORWARD	All to containers	Traffic forwarded to Docker containers
NAT	Masquerade on Wan exit	Address translation for Internet access

Interface management

Managed files

All interface and rule management is performed by the network-configurator script. All files managed by this script are prefixed with the comment Managed by network-configurator. Manual modifications to these files may be overwritten when running network-configurator.
